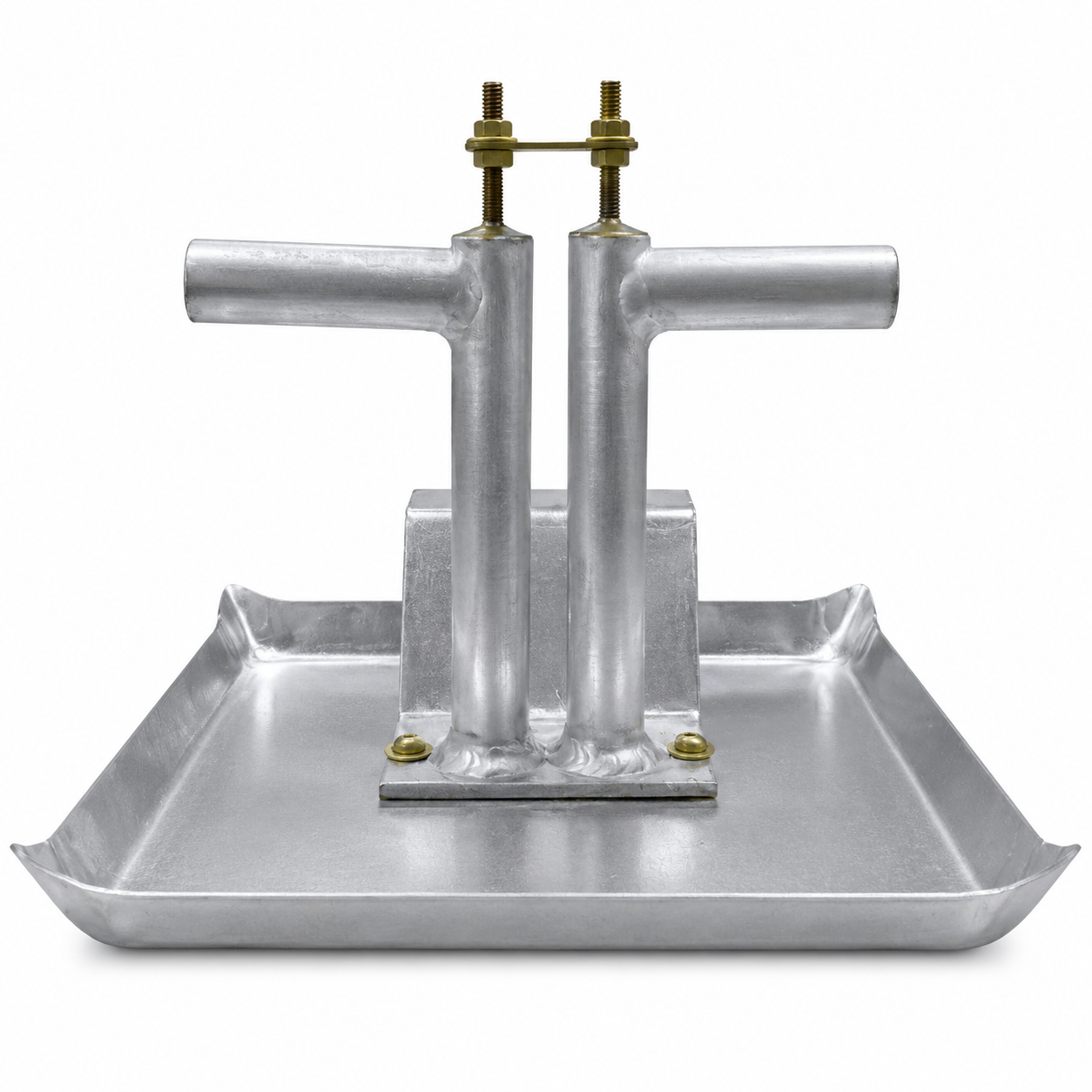

The 700 MHz Parabolic Illuminator is the perfect solution for anyone needing efficient and reliable signal distribution in satellite communication systems. Ideal for communication applications in rural and remote areas, this illuminator offers high performance with gain dependent on the diameter of the parabolic dish used. With robust construction and the ability to support up to 100 W of power, it is perfect for outdoor installations, ensuring a stable and long-range connection.
✅ Benefits
🔹 High Performance – offers excellent efficiency in satellite communication systems.
🔹 Versatility – vertical or horizontal linear polarization, adapting to different installation needs.
🔹 Resistance and Durability – ideal for outdoor installations, supporting adverse weather conditions.
🔹 Easy Installation – designed to be installed on parabolic antennas, providing flexibility in applications.
🔹 High Power Capacity – supports up to 100 W, ensuring superior performance over long distances.
📌 Recommended Applications
-
Connection of satellite communication systems in rural and remote areas.
-
Installation in signal transmission and reception systems on parabolic dishes.
-
Use in connectivity and remote monitoring projects.
-
High-capacity communication solutions in outdoor environments, such as industrial, commercial, and rural areas.
⚙️ Technical Specifications
| Specification | Detail |
|---|---|
| Frequency | 703 to 803 MHz |
| Gain | Will depend on the diameter of the parabolic dish |
| VSWR | < 2:1 |

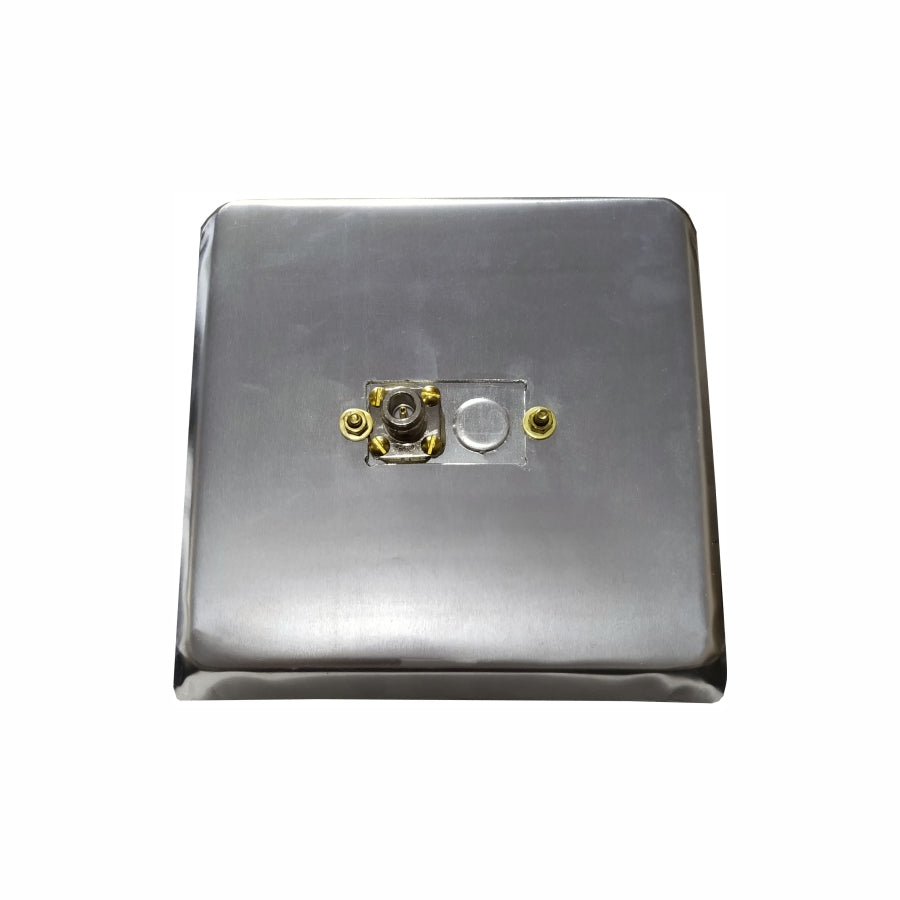

| Connector | N Female |
| Polarization | Linear vertical or horizontal |
| Maximum Power | 100 W |
| Impedance | 50 Ω |
| Bandwidth | 100 MHz |
| Weight | 1200g |
| Installation | Outdoor |
NOTE: Field tests have shown a real gain of 26 dBi with a 1.70m diameter parabolic antenna.
NOTE: The parabolic antenna is not included with the product. Images of parabolic dishes are for better visualization of product operation only.
👉 Purchase your 850 MHz Parabolic Illuminator and get an efficient and high-performance communication solution!
*Illustrative images only.
