Descrição geral

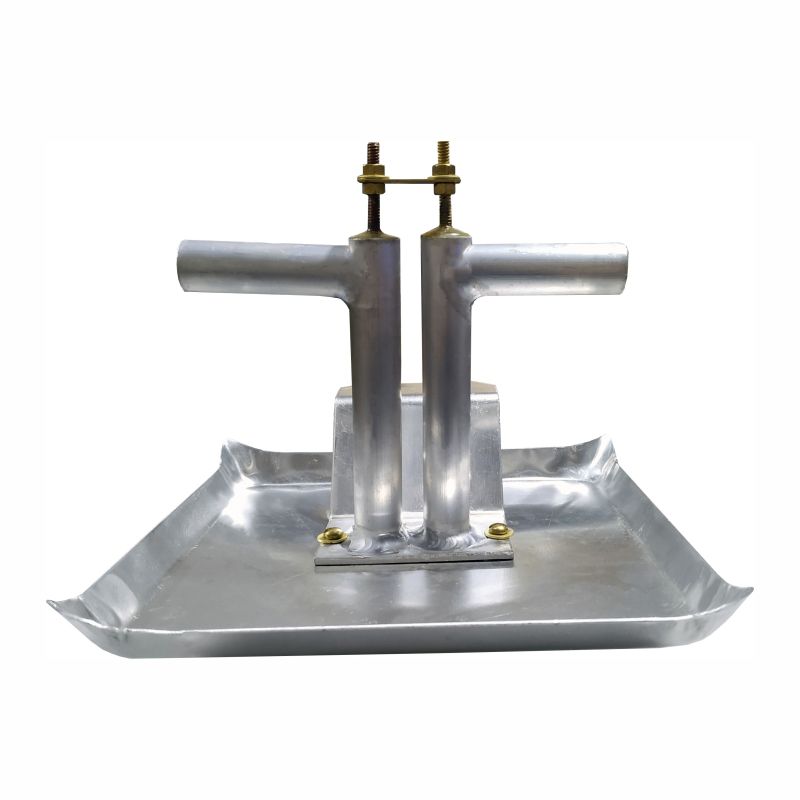

The 850 MHz Parabolic Feed Horn is the perfect solution for those who need efficient and reliable signal distribution in satellite communication systems. Ideal for communication applications in rural and remote areas, this feed horn offers high performance with a gain dependent on the diameter of the parabolic dish used. With robust construction and the ability to support up to 100 W of power, it is perfect for outdoor installations, ensuring a stable and long-range connection.
✅ Benefits
🔹 High Performance – offers excellent efficiency in satellite communication systems.
🔹 Versatility – linear vertical or horizontal polarization, adapting to different installation needs.
🔹 Resistance and Durability – ideal for outdoor installations, supporting adverse weather conditions.
🔹 Easy Installation – designed to be installed on parabolic antennas, providing flexibility in applications.
🔹 High Power Capacity – supports up to 100 W, ensuring superior performance over long distances.
📌 Recommended Applications
-
Connection of satellite communication systems in rural and remote areas.
-
Installation in transmission and reception signal systems on parabolic dishes.
-
Use in connectivity and remote monitoring projects.
-
High-capacity communication solutions in outdoor environments, such as industrial, commercial, and rural areas.
⚙️ Technical Specifications
| Specification | Detail |
|---|---|
| Frequency | 824 to 894 MHz |
| Gain | Will depend on the diameter of the parabolic dish |
| VSWR | < 2:1 |
| Connector | N Female |
| Polarization | Linear vertical or horizontal |
| Maximum Power | 100 W |
| Impedance | 50 Ω |
| Bandwidth | 100 MHz |
| Weight | 1200 g |
| Installation | Outdoor |
NOTE: Field tests with a 1.70m diameter parabolic antenna have achieved a real gain of 26 dBi.
NOTE: The parabolic antenna is not included with the product. Images of parabolic dishes are for better visualization of the product's operation only.
👉 Get your 850 MHz Parabolic Feed Horn and have an efficient and high-performance communication solution!
*Illustrative images only.
